Description

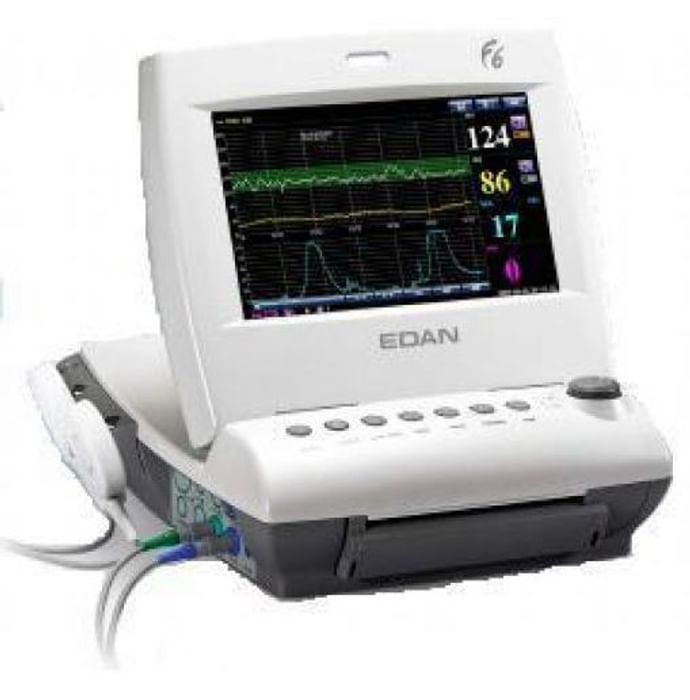

Product information: Edan F6 Fetal Monitor with Foldable Screen 10.2 inches foldable, wide color screen 150/152 mm universal thermal recording paper Highly sensitive 1 Mhz waterproof transducer Signals overlap Verification to discriminate twins FHR 24 hours backup memory Long life Lithium-ion battery Insight software for data management Central Monitoring System Complete mounting and carting solution Salient features of Edan F6 Fetal Monitor with Foldable Screen: PERFORMANCE SPECIFICATIONS - Display : 10.2 inches color TFT-LCD - Resolution: 800x480 - Recorder: 1/2/3 cm/min/real-timeprinting speed, Fast print speed ( stored traces ) up to25mm/sec - Paper: 150/152mm, Z-fold, thermosensitive, American/International standard ULTRASOUND - Technique: Ultrasound pulse Doppler with autocorrelation - Pulse repetitioon rate: 2 Khz - Ultrasound frequency: 1.0MHz-+10% - FHR range: 50bpm - 240bpm - Resolution: 1bpm - Accuracy: -+2 bpm DECG - Techinque: Peak - Peak detection technique - FHR range: 30bpm- 240bpm - Resolution: 1bpm - Accuracy:-+1bpm - Input Impedance: > 10M (Differential) - Input Impedance: >20M (Commaon Mode) TOCO - TOCO range:0-100 relative (%) - Resolution: 1 count - Zero Mode: Autp/Manual - Non-linear error: 10% IUP - Pressure range:0-100mmHg - Resolution: 1% - Zero Mode: Auto/Manual - Non-linear error: +-3mmHg AUTO FETAL MOVEMENT (AFM) - Technique: Pulse Doppler ultrasound - Range:0-100(%) - Resolution: 1% BATTERY - 14.8 V rechargeableLithum-ion battery - Continual working time: 2-4 hours SIGNAL INTERAFACE - network interface, RJ45 interface Standard Configuration: FHR, TOCO, FM, AFM Optional Configuration: Twins FHR, DECG&IUP, Fetal Stimulator, Built-in Wireless Module, Li-ion Battery Diamensions: 347mm x 330mm x 126mm Weight: approx 6 kg
